Jansno X50/ X60/ X70 Electric Bike 48V Brushless Motor Controller
- Ship in 1 Business Days
- Free Shipping and No Tax.
- In stock, ready to ship
🔌 Choose the Right Controller for Your E-bike
Controller Specifications
-
Voltage: 48V
-
Maximum Current: 28A + 1A
-
Low Voltage Protection: 39V + 1V
❓ How to Select the Correct Controller
Check the back of your original controller for a printed label.
Look for the "Type" field to determine the exact model.
If your e-bike uses a Half Twist Throttle with a key ignition, you will need a controller with lock.
🔐 Controller with Lock – Compatibility Overview

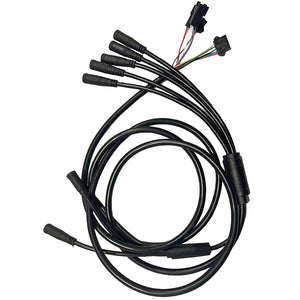

All controllers with lock are compatible with wiring harnesses with lock.
However, the tail light connection differs depending on the controller model and the tail light version.
✅ Controller and Tail Light Compatibility Chart

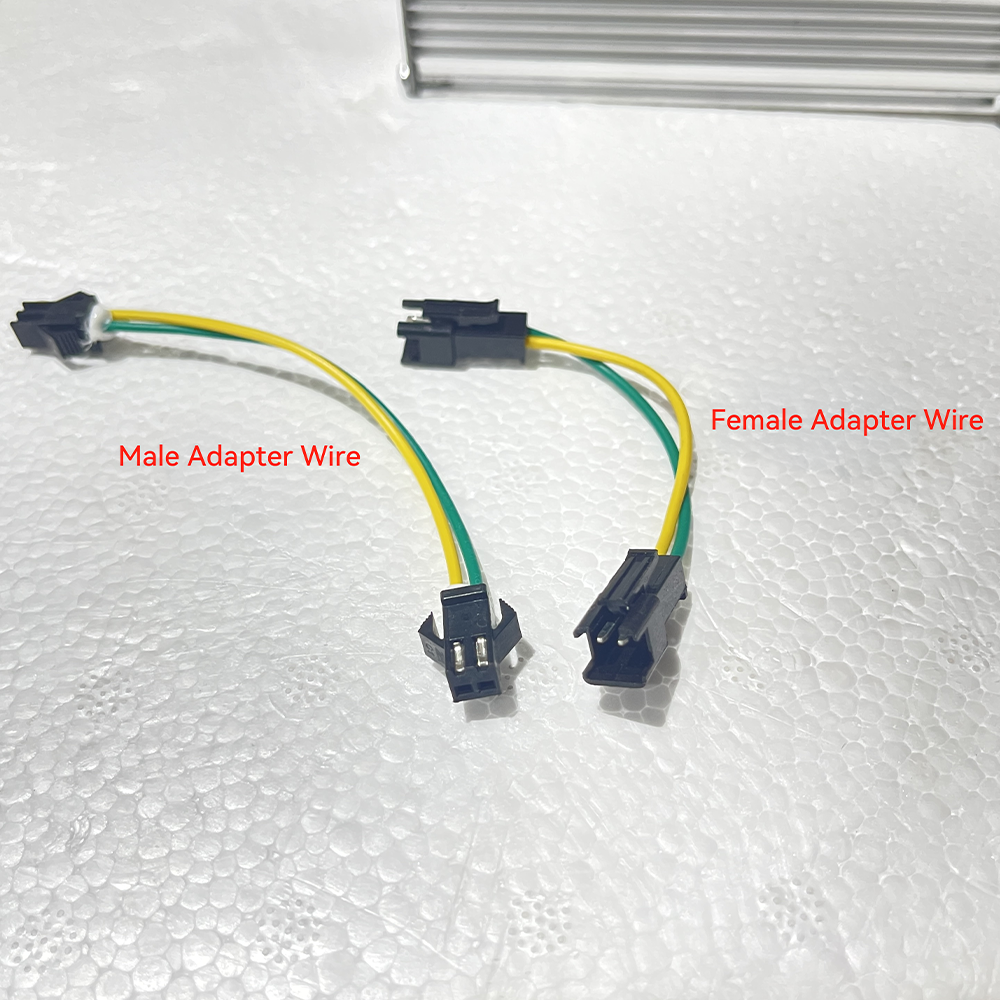

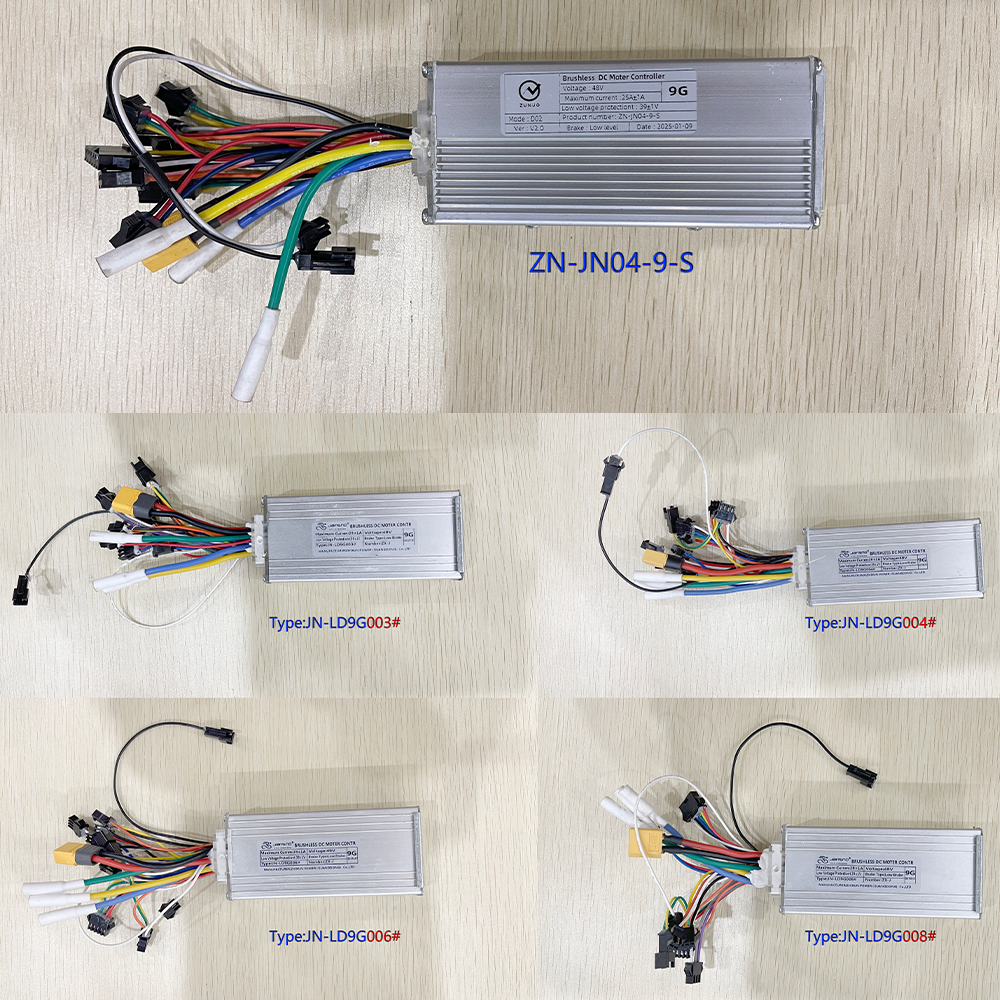

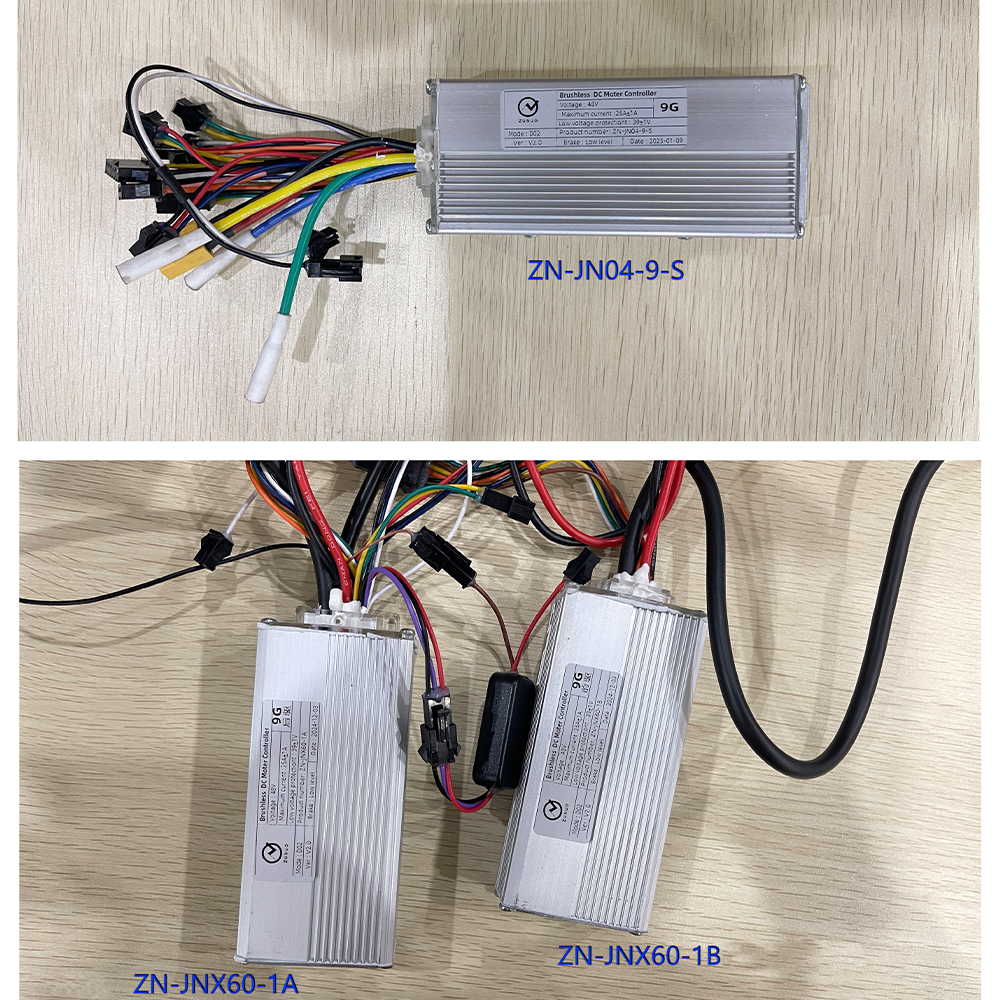

| Controller Model | New Tail Light | Original Tail Light |
|---|---|---|
| ZN-JN03-9-S | ✅ Direct Connection | ⚠️ Requires Male Adapter Wire |
| ZN-JN04-9-S | ⚠️ Requires Female Adapter Wire | ✅ Direct Connection |
| JN-LD9G003# | ✅ Direct Connection | ⚠️ Requires Male Adapter Wire |
# JN-LD9G006 and JN-LD9G008# are universal.
📌 Final Checklist Before Installation
-
Check if your throttle has a key ignition
-
Confirm the controller model number
-
Identify the tail light version: New or Original
-
Ensure the correct adapter cable (if needed)
Incorrect pairing may result in non-functional lights or electrical failure.
